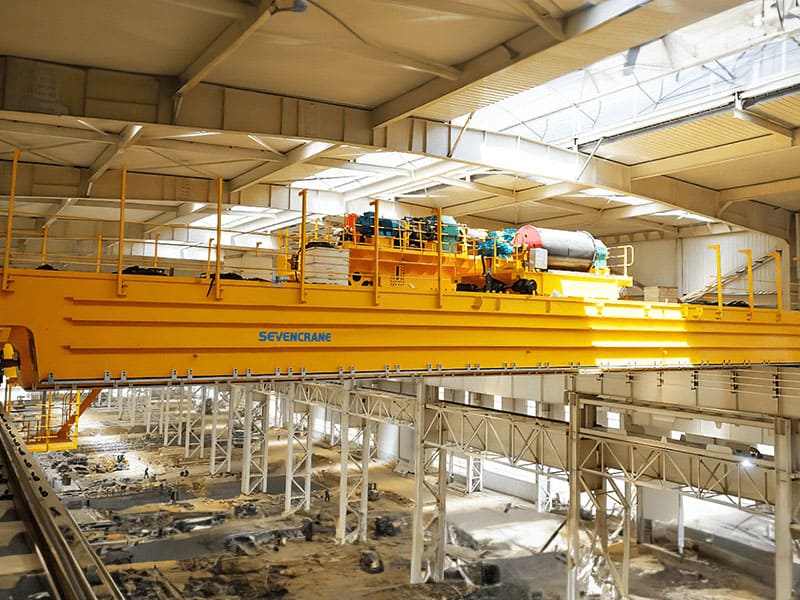

Forging overhead crane is a kind of industrial overhead crane, which adopts process crane design and special lifting device for lifting, buffering, overturning, etc. of large forgings. It is a very important Material-handling equipment in forging workshop. The rated lifting capacity of a forging crane refers to the total weight of the flipper, lifting device, and lifting of large forging workpieces.

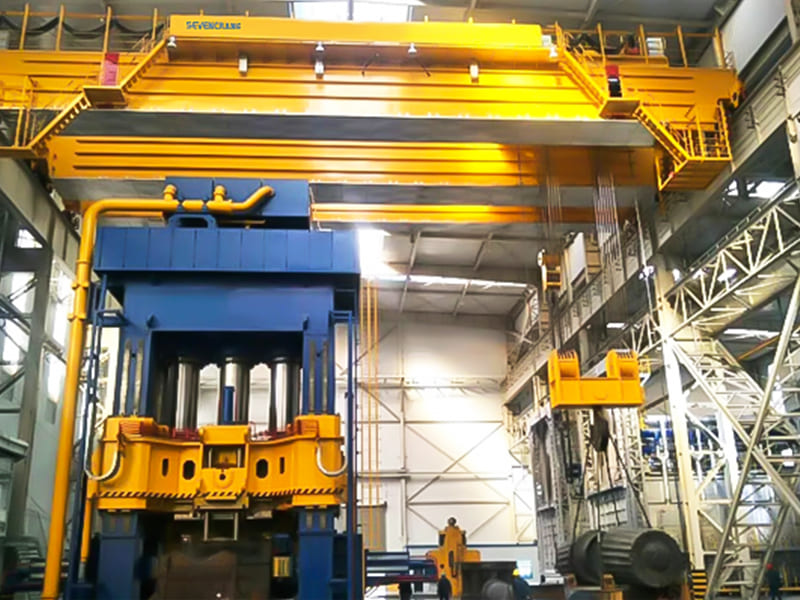

Large forging workpiece handling is the primary function of forging overhead crane. The overhead forging crane’s up-ender, which is a specialized lifting device, works with the main hook and auxiliary hook to lift and turn the workpiece before placing it on the cutting board of the hydraulic press. This is to prepare the hydraulic press for the next work.
The forginging of the work piece will go over the above methodology repeatably until the certified item is produced. To combat the impact load during the forging process, the forging cranes typically have buffer and loosening mechanisms to ensure durability and safety.

1. Equipped with mechanical anti impact function and mechanical anti overload function, safe and reliable;
2. Can withstand 1.4 times static load and 1.2 times dynamic load experiments;

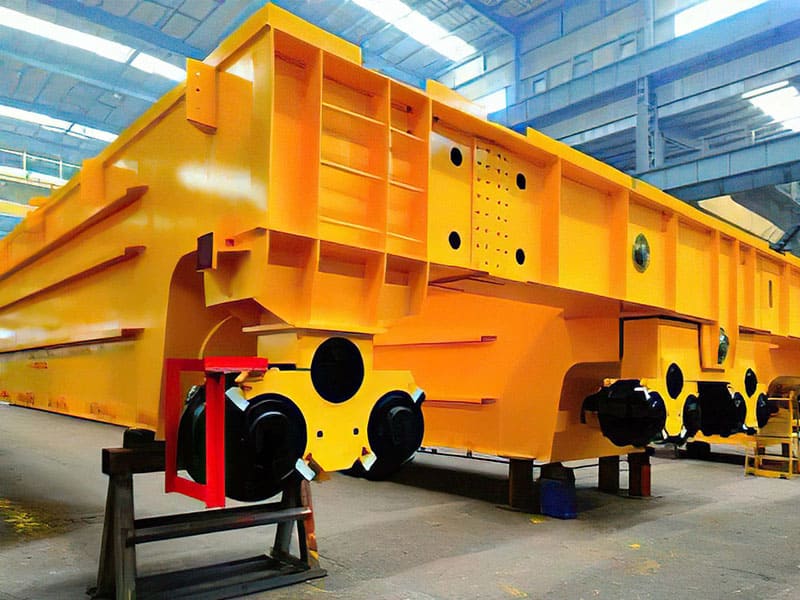

3. The bridge structure is designed with three beams and four tracks, and both the main and auxiliary beams adopt a wide flange offset rail box structure;
4. Equipped with a dedicated tipping machine to achieve workpiece lifting and flipping;
5. The key points of each part are verified and calculated using finite element analysis technology;
6. Flexible design, with bolt and hinge connections between each module for easy installation and maintenance. Improve plant utilization, reduce energy consumption, and have strong adaptability.
